Middle Type Squeezer Machine(SOY SQUEEZE)

“Full-automatic continuous soymilk squeezer “Sibori-Ace”

Features

Designed for Silken/Firm Tofu and pouch and Deep fried Tofu.

  • Machine Wash is easier than Large Type Squeezer Machine.Compare to Large Type Squeezer, there is less unwashed parts.
  • Filter is hard to break and it is good for cost-saving.(Durable-life is more than 5years. Proven )
  • Clogging is hardly occurred, because the machine attached scraper.(Continuous Operating Time is 8hours. Proven)

As following items are vary and depend on specifications.

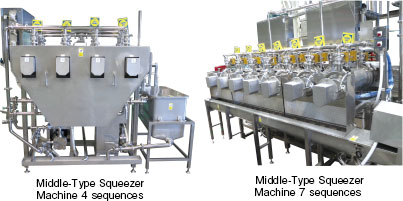

  Middle-Type Squeezer Machine 4 sequences Middle-Type Squeezer Machine 7 sequences
Out Diameter (mm) H1.700×W2.027×D1.379 H 4.566×W3.162×D1.374
Capacity 300kg(240kg for defoamer ) 525kg(420kg for defoamer)
Electricity 3 phase 50-60Hz 15kw
(With Beittel pump of doorway )
3 phase 50-60Hz 15Kw
(With Beittel pump of doorway )

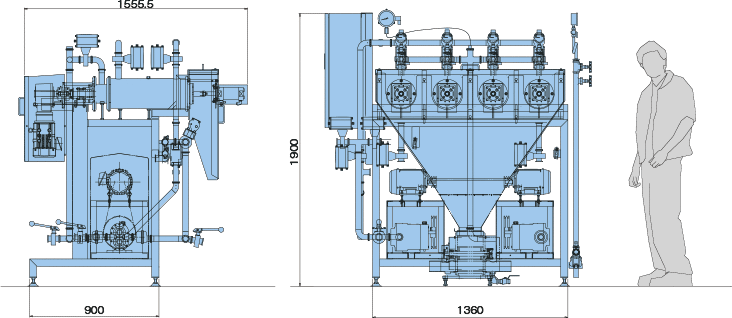

Product drawing
