Full-automatic continuous soymilk squeezer “Sibori-Ace”

“Full-automatic continuous soymilk squeezer “Sibori-Ace”

Features

Designed for silken/firm tofu and deep-fried tofu and pouch

  • The system adjusts the temperature of soymilk with a plate cooler; the moisture of Okara slightly changes depending on the density of soymilk. It adopts automatic control and circulation cleaning mechanisms.
  • Clogging prevention yields a higher result.
  • Thanks to a special filter, there is no need to remove lees and fibers.
  • Circulation cleaning through closed systems promotes better hygiene.
  • The plate cooler as standard equipment controls the temperature of soymilk properly.
  • The automatic system cuts out troublesome manual operation and control.
  • You can choose from three types depending on production size.

* Basic capacity varies depending on the kind of soybeans or the amount of water to add.

  Single screw Double screw
Size (mm) 700×1,880×1,350 810×1,880×1,350
Material SUS304 SUS304
Capacity Max: 150kg/h Max: 300kg/h
Electricity AC200V 3φ 2kw AC200V 3φ 3kw
Weight 400kg 600kg

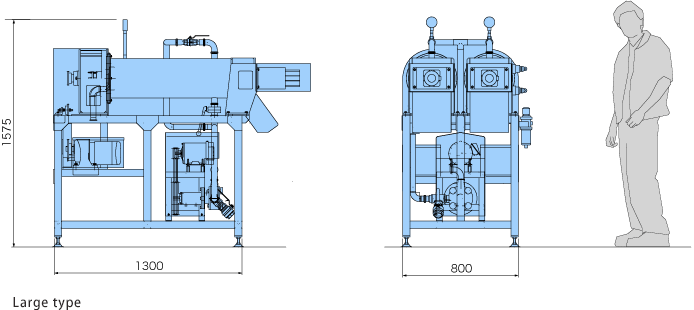

Product drawing
