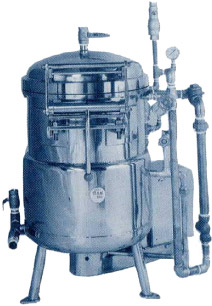

Batch cooker “Mametaro”

“Full-automatic continuous soymilk squeezer “Sibori-Ace”

Features

Designed for silken/firm tofu and deep-fried tofu and pouch

  • Indirect steam type: This machine has a double wall structure and cooks ground soybean with steam flowing through the gap.It adopts a unique stirring blade to ensure uniform cooking.
  • Semi-automatic type: It is only necessary to manually feed soaked soybeans into the hopper to the grinder. Then the machine automatically grinds and cooks soybeans.
  • Full-automatic type: No manpower is required. You just press a button to start pumping soaked soybeans to the grinder and the cooker.
Size 606φ×950H   Capacity Dry beans: About 9kg
Motor HP 0.2kw   Full amount of water About 150L
Brade RPM 30 r.p.m   Normal gauge pressure Under 2kg/cm2
Steam consumption 65 kg / h   Thermometer 0~120℃
Electricity consumption 0.2 kw   Total weight About 200kg
Spec Incl. Safety valve for jacket, pressure gauge, steam traps, remote thermometer, piping components
