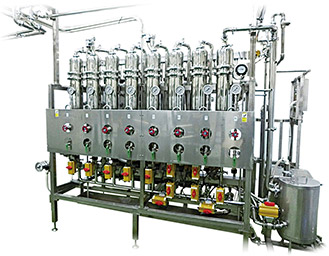

Features

Designed for silken/ firm tofu and deep-fried tofu and pouch

  • Ground soybeans are cooked in drum-type cookers.
  • The steam volume can be easily controlled; steam valve is automatically opened and closed by a proportional control valve.
  • No proportional valve type is also available.
  • The boiling temperature can be easily set by switching a channel to “Firm”, or “Silken" or “Age”.
  • At customer's request;
    -No deformer production is available.
    -It is possible to cook twice by installing aging pipe(s) at the back of the cookers.
  MII-30 MII-35 MII-45
Volumetric capacity 300L 350L 450L
Size 1,100×2,330×2,060 1,100×2,830×2,060 1,100×3,240×2,060
Basic capacity(/h) 150~180kg / with deformer 210kg / with deformer 300~330kg / with deformer
Spec(Brix11) 120~150kg/ non-deformer 180kg / non-deformer 240~270kg / non-deformer

*Basic capacity can vary depending on the kind of soybean and the amount of water added.

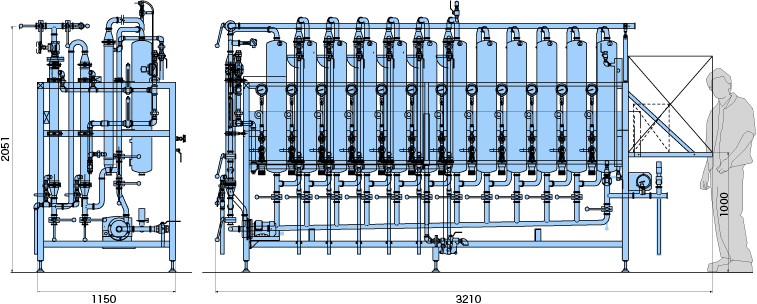

Product drawing

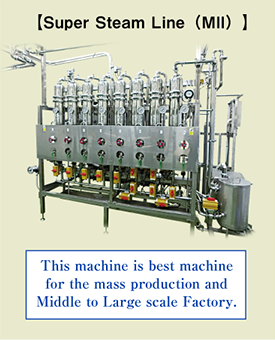

Medium/Large lot Tofu Produce Line[ MIILine] 【produce scale】 Approx. Soymilk 1285L

his machine is available : Several types of cook, Multiproduct produce, Simple Channel Switch
【Option 1:】 Non-deformer is available 【Option 2 :】Auto-Switch is available during CIP cleaning by assembling the Auto-Valve, You can easily reduce a labor cost.
【Option 3:】 You can auto-control to a steam valve by a proportional control valve.
【Option 4:】 An aging Tube can be installed. (It can be installed from one tube）

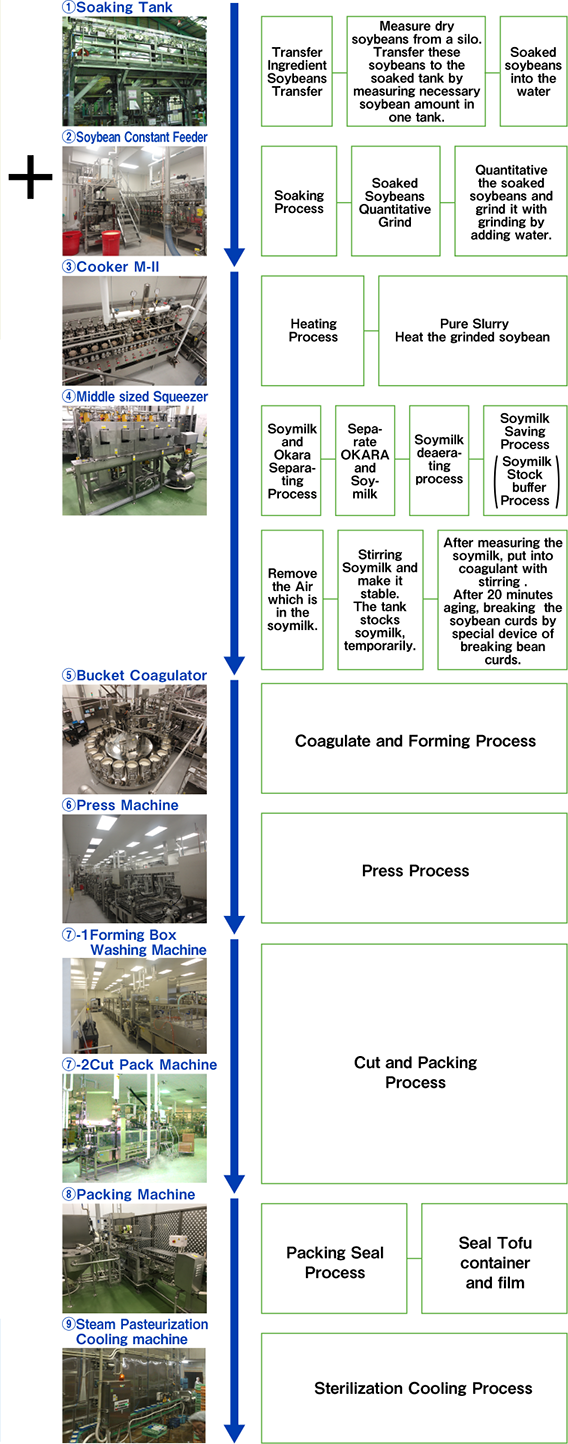

M-ll Usage Example: Extra/hard Firm Tofu

※Soymilk Brix
Brix 11%, use "Nigari"

Production Capacity
per hour		 appx.2000pcs
Extra Firm
1Total Amount of
Soy ean per hour		 appx.258kg
Soymilk Amount
per hour		 appx. 12,850L

Hypothetical Calculation
･Extra Firm Tofu 1pc =250g
･Soybean contains 60% moisture 1kg=2kg TOFU

You can check our YOUTUBE movie Check the QR Code.

■Necessary Utility

レイアウト例

■Necessary Utility

Steam Amount 330kg/h (1-1/2”) Air Amount 0.6MPa ,50NL/min (1/2“)
Water Amount 0.3MPa ,2.4n2/h (3/4”) Electrical Amount 3 phase 1.9kw (Heating Cooker , reverse feeder pump Total)
