Soak:Soybean soaking tanks – Parallel type and four-square type

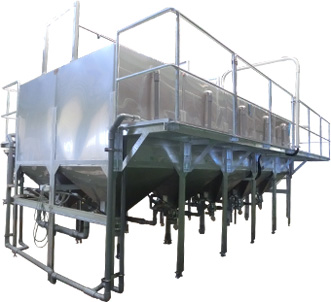

Soybean soaking tank systems (Type A: Parallel design, Type B: Four-square design)

Features

Designed for silken/ firm tofu and deep-fried tofu and pouch

  • This system soaks dry soybeans prior to grinding. It is possible to automate soybean feeding and transferring steps according to optional choices.

【Standard collection】

  • Soybean discharging valve (a gate or butterfly valve)

  • Soybean stopper plug set (a stopper ball, stopper removal cylinder and stainless wire)
  • Manual water supplier
  • Manual blower

【Optional features】

  • Soybean discharging stopper (The discharging valve also works as a stopper plug.)
  • Automatic water supplier
  • Automatic blower (including a valve set and a control panel)
  • Stand (galvanized, depending on the size of stainless steel)

  Parallel type   Four-square type
  A B C   A B C
180kg 1,000 417 925   1,000 584 460
240kg 1,000 690 925   1,000 834 460
300kg 1,000 666 1025   1,100 850 510
360kg 1,150 751 1025   1,150 945 530
420kg 1,150 910 1075   1,150 1,134 530
480kg 1,220 937 1145   1,220 1,141 570

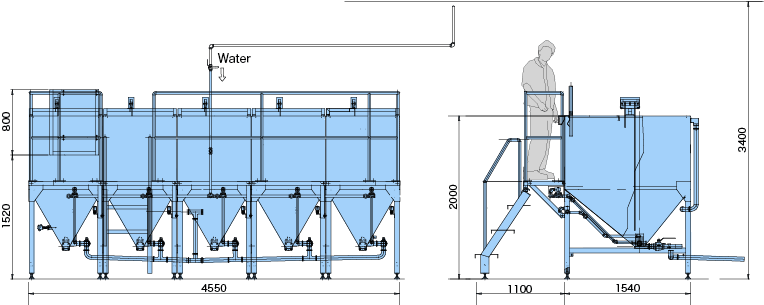

Product drawing
