Soymilk Plant:“Mini-Star” (Compact soymilk plant)
COP system
Features
Designed for silken/firm tofu and deep-fried tofu and pouch
- All stainless-made reliable & economical machine
- All arounder; soybean feeding & mashing, slurry cooking and soymilk extraction
- Ideal to small shops and laboratories

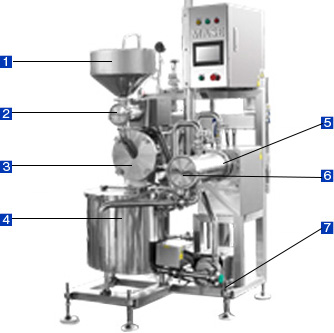

1-square-meter machine full with of functions
- Entrance of soaked soybeans
- Soybean constant feeder
- Masher
- Cooker
- Separator
- Okara exit
- Soymilk exit
CE marking Mini-Star is available!
| Size | H1,850mm x W950mm x D1,000mm |
| Steam | Max130kg/h |
| Electricity | 3-phase 200V 3kW |
| Capacity | ca. 24kg/h |

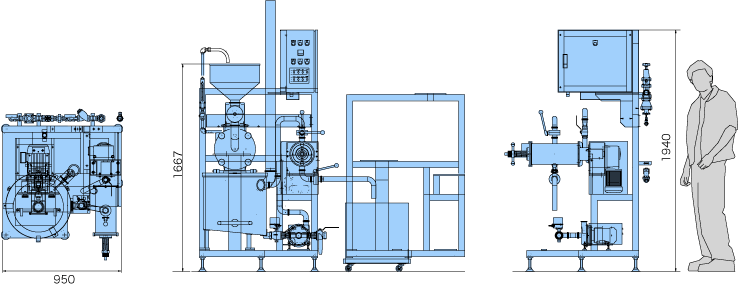

Product drawing

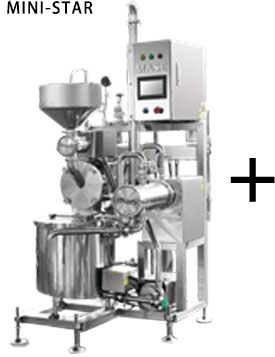

TOFU/SOYMILK Small Lot Prodaction Line[Mini-Star Line]
■Making Soymilk and TOFU by using Mini-Star Line.
※Production Scale above : It has always changed by TOFU's sort and size capacity.
Additional necessary equipment for making Tofu Both Silken/Firm Tofu
| SILK HOPE | FORMING BOX FOR SILKEN TOFU |
| GATHERING TUB | EDGE CUTTER |
| A CART MADE BY ALUMINUM | ONE TOUCH CUTTER |
| COOLING TANK | CONCENTRATION METER |
| WORKING TABLE | THERMOMETER |
| CLOTH | SOAKING TANK |
| FLATTING PLATE | COLANDER |
| CLOTH PUSHER | PACKING MACHINE ON HAND |
| CUTTING KNIFE | FORMING BOX FOR FIRM TOFU |
Additional necessary equipment for making Soymilk
| SILK HOPE | FORMING BOX FOR SILKEN TOFU |
| GATHERING TUB | EDGE CUTTER |
| A CART MADE BY ALUMINUM | ONE TOUCH CUTTER |
| COOLING TANK | CONCENTRATION METER |
| WORKING TABLE | THERMOMETER |
| CLOTH | SOAKING TANK |
| FLATTING PLATE | COLANDER |
| CLOTH PUSHER | PACKING MACHINE ON HAND |
| CUTTING KNIFE | FORMING BOX FOR FIRM TOFU |
Additional necessary equipment for making Tofu Silken Tofu
| SILK HOPE | FORMING BOX FOR SILKEN TOFU |
| GATHERING TUB | EDGE CUTTER |
| A CART MADE BY ALUMINUM | ONE TOUCH CUTTER |
| COOLING TANK | CONCENTRATION METER |
| WORKING TABLE | THERMOMETER |
| CLOTH | SOAKING TANK |
| FLATTING PLATE | COLANDER |
| CLOTH PUSHER | PACKING MACHINE ON HAND |
| CUTTING KNIFE | FORMING BOX FOR FIRM TOFU |
Additional necessary equipment for making Tofu Firm Tofu
| SILK HOPE | FORMING BOX FOR SILKEN TOFU |
| GATHERING TUB | EDGE CUTTER |
| A CART MADE BY ALUMINUM | ONE TOUCH CUTTER |
| COOLING TANK | CONCENTRATION METER |
| WORKING TABLE | THERMOMETER |
| CLOTH | SOAKING TANK |
| FLATTING PLATE | COLANDER |
| CLOTH PUSHER | PACKING MACHINE ON HAND |
| CUTTING KNIFE | FORMING BOX FOR FIRM TOFU |
■Lay out of Mini-Star Line Examples (PDF）
■Necessary Utility
| Steam Flow | 220kg/h Connection Dia.25 (1 inch) |
Electricity | AC200V Three phase 2.2kw/h |
|---|---|---|---|
| Quantitiy of water | 80L/h Connection Dia. 15A (1/2 inch) |
■Mini-Star's Function ③④
| Equipment Name Name | Mini-Star③ | Mini-Star④ |
|---|---|---|
| Grinder | Stainless Mash | Stainless Mash |
| Constant Feeder | ○ | ○ |
| No Deformer System Option | ○ | ○ |
| Sanitary Pipe | ○ | ○ |
| Touch Panel | × | ○ |
| Frange Type Valve | × | ○ |
| Equipment Name | Discription |
|---|---|
| Grinder | Mash Type: Easy to wash clean and Hygiene |
| Constant Feeder | Soybean：Auto Measurement and grind, convinient |
| Non- Deformer | It is necessary when you make TOFU. Remove the bubbles of Soymilk |
| Sanitary Pipe | This pipe should be used for food processed machine to keep hygiene quality. |
